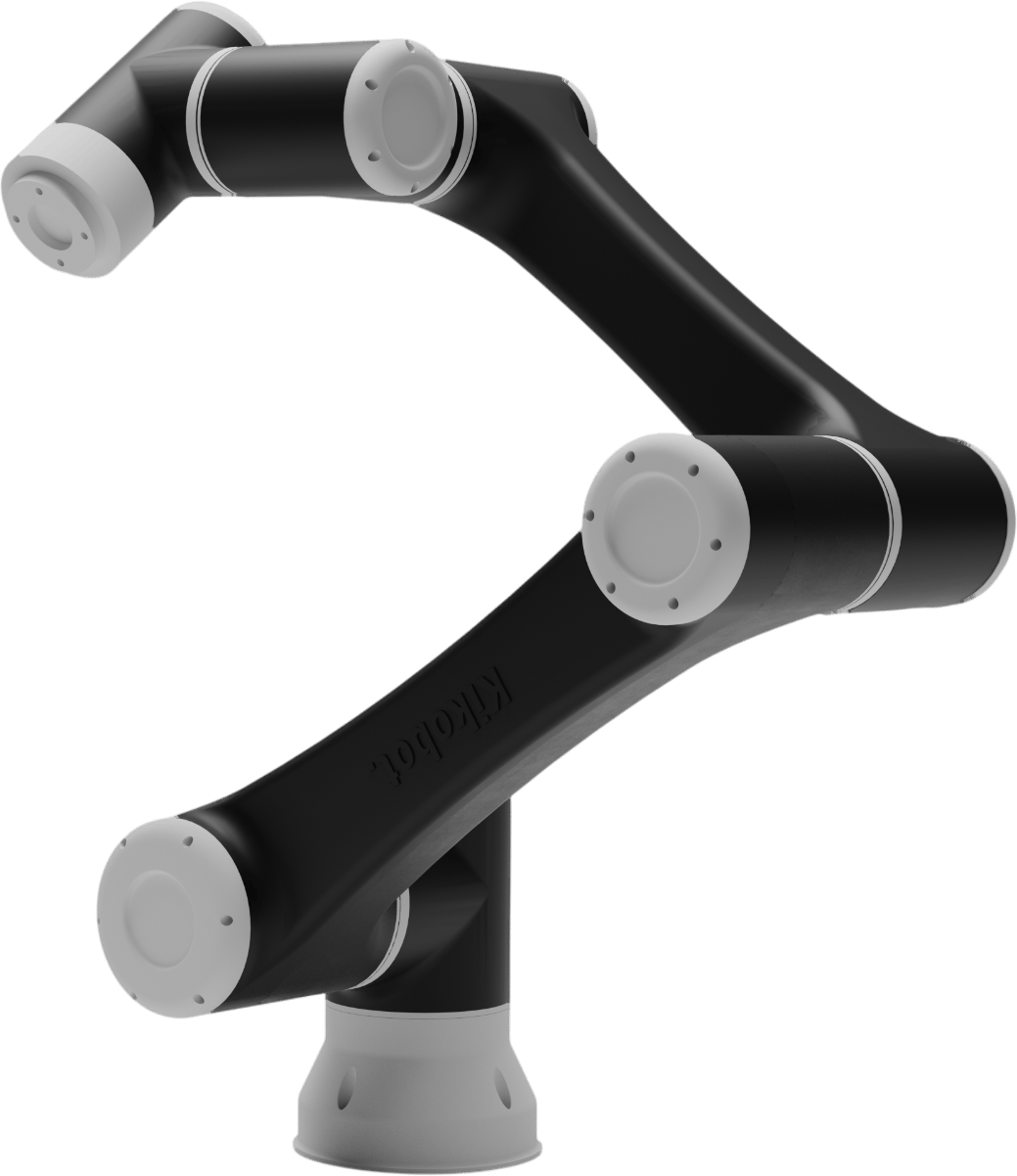

Meet the CI Series.
Built to work with you.
Six-axis collaborative robots (cobots) for machine tending, material handling, assembly and welding — built for modern manufacturing.
- Payload
- 3 – 10 kg
- Reach
- 600 – 1400 mm
- Repeatability
- ±0.05 mm
Made in India
Collaborative robots
Designed for
people and production
The CI Series combines precision, safety and ease of use to help you automate faster. Whether you’re tending machines, assembling parts or inspecting components, CI robots work alongside your team — reliably and efficiently.
Safe collaboration
Built-in force, torque and collision detection for safe human-robot interaction. (Risk assessment required for your application.)
Easy to program
Drag-to-teach or use Kikobot Studio with a visual, drag-and-drop interface.
Flexible integration
Standard I/O and industrial protocols for easy integration.
Reliable performance
Engineered for continuous operation in real production environments.
Specifications
Find the right CI robot
for your application
| Model | CI3 | CI5 | CI7 | CI10 |
|---|---|---|---|---|
| Payload | 3 kg | 5 kg | 7 kg | 10 kg |
| Reach | 600 mm | 860 mm | 960 mm | 1400 mm |
| Degrees of freedom | 6 | 6 | 6 | 6 |
| Repeatability | ±0.05 mm | ±0.05 mm | ±0.05 mm | ±0.05 mm |
| Linear velocity | 2.5 m/s | 2.5 m/s | 3 m/s | 2.5 m/s |
| Robot weight | 14 kg | 24 kg | 25 kg | 39 kg |
| Range of motion · J1, J2, J4–J6 | ±360° | ±360° | ±360° | ±360° |
| Range of motion · J3 | ±360° | ±360° | ±150° | ±150° |
| Maximum joint speed · J1–J2 | 160°/s | 160°/s | 160°/s | 160°/s |
| Maximum joint speed · J3 | 180°/s | 180°/s | 180°/s | 160°/s |
| Maximum joint speed · J4–J6 | 180°/s | 180°/s | 180°/s | 180°/s |
| Communication interface | Ethernet / Modbus | Ethernet / Modbus | Ethernet / Modbus | Ethernet / Modbus |
| End-effector I/O | DI, DO, AI, AO / RS485 | DI, DO, AI, AO / RS485 | DI, DO, AI, AO / RS485 | DI, DO, AI, AO / RS485 |
| Power supply | 100–240 V AC, 50/60 Hz | 100–240 V AC, 50/60 Hz | 100–240 V AC, 50/60 Hz | 100–240 V AC, 50/60 Hz |
| Rated voltage | 48 V DC | 48 V DC | 48 V DC | 48 V DC |
| Power consumption | 400 W | 550 W | 600 W | 750 W |
| Operating temperature | 0–60 °C | 0–60 °C | 0–60 °C | 0–60 °C |
| Installation | Floor mounting | Floor mounting | Floor mounting | Floor mounting |
| Materials | Aluminium, ABS | Aluminium, ABS | Aluminium, ABS | Aluminium, ABS |

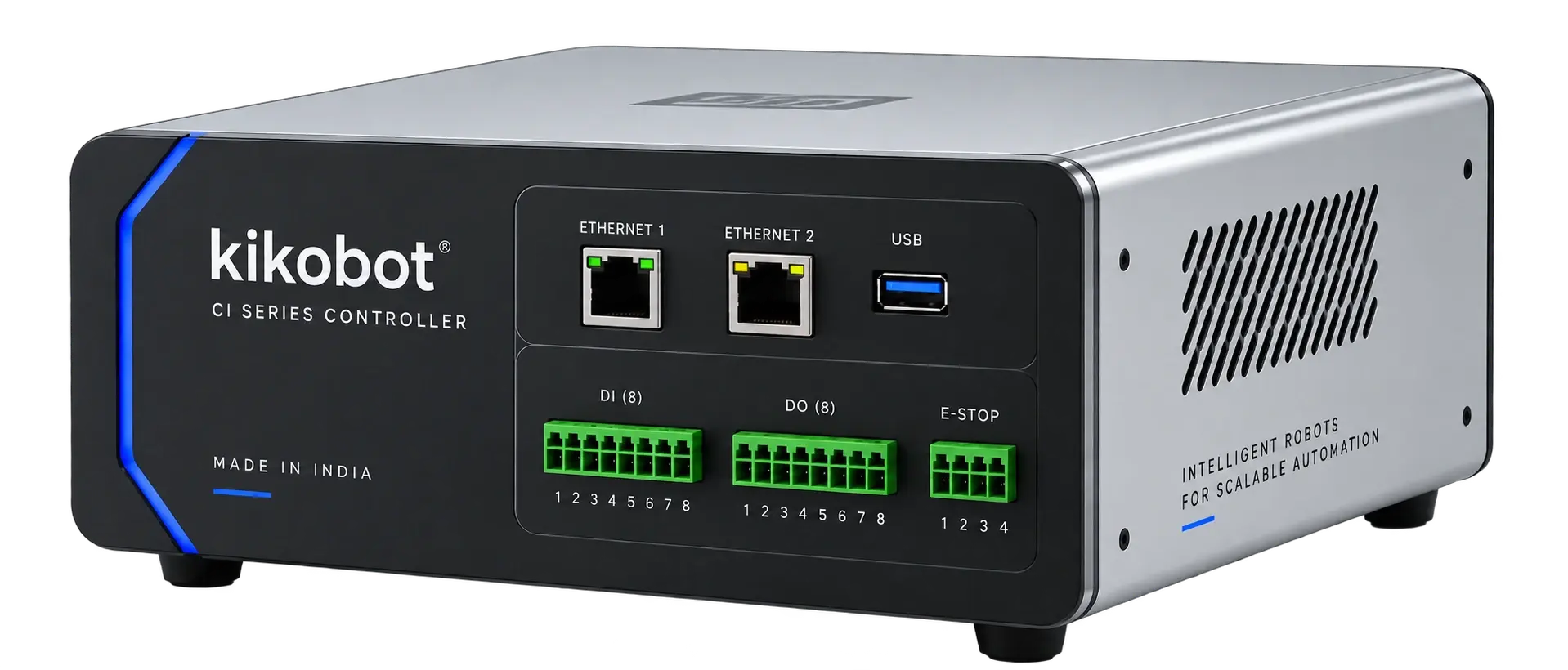

Controller & connectivity
Ready for your production environment
- Digital I/O
- 8 DI / 8 DO
- Modbus
- Ethernet
- End-effector interface
- RS485
- Input voltage
- 100 – 240 V AC
- 01Start program
- 02Move to pick position
- 03Close gripper
- 04Move to place position
- 05Open gripper
Build a sequence, one step at a time.
Z ↑Y ↗ X →CI Series · Motion preview
Visualise the robot before deployment.
Understand joint status and system performance.
Illustrative interface previews
Kikobot Studio
Program. Simulate. Deploy.
Kikobot Studio makes it simple to program, simulate and manage your CI robots. Plan motions, test in a virtual environment and deploy to your robot — all in one platform.
- Visual, drag-and-drop programming
- 3D simulation and collision checking
- Real-time monitoring and diagnostics
- Save, deploy and manage multiple robot programs
Applications
Built for a wide range of industries

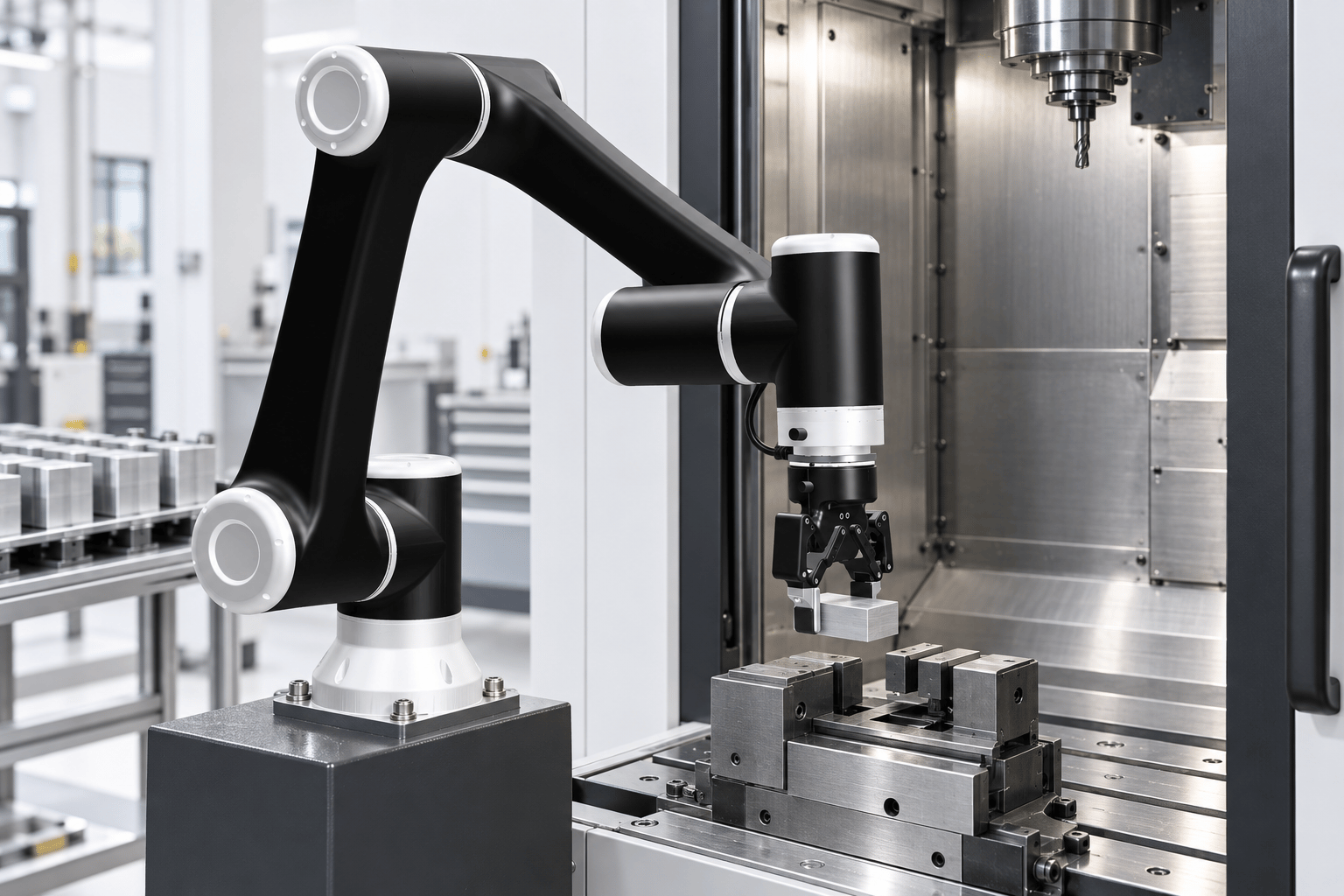

Machine tending
Load and unload machines with repeatable positioning.

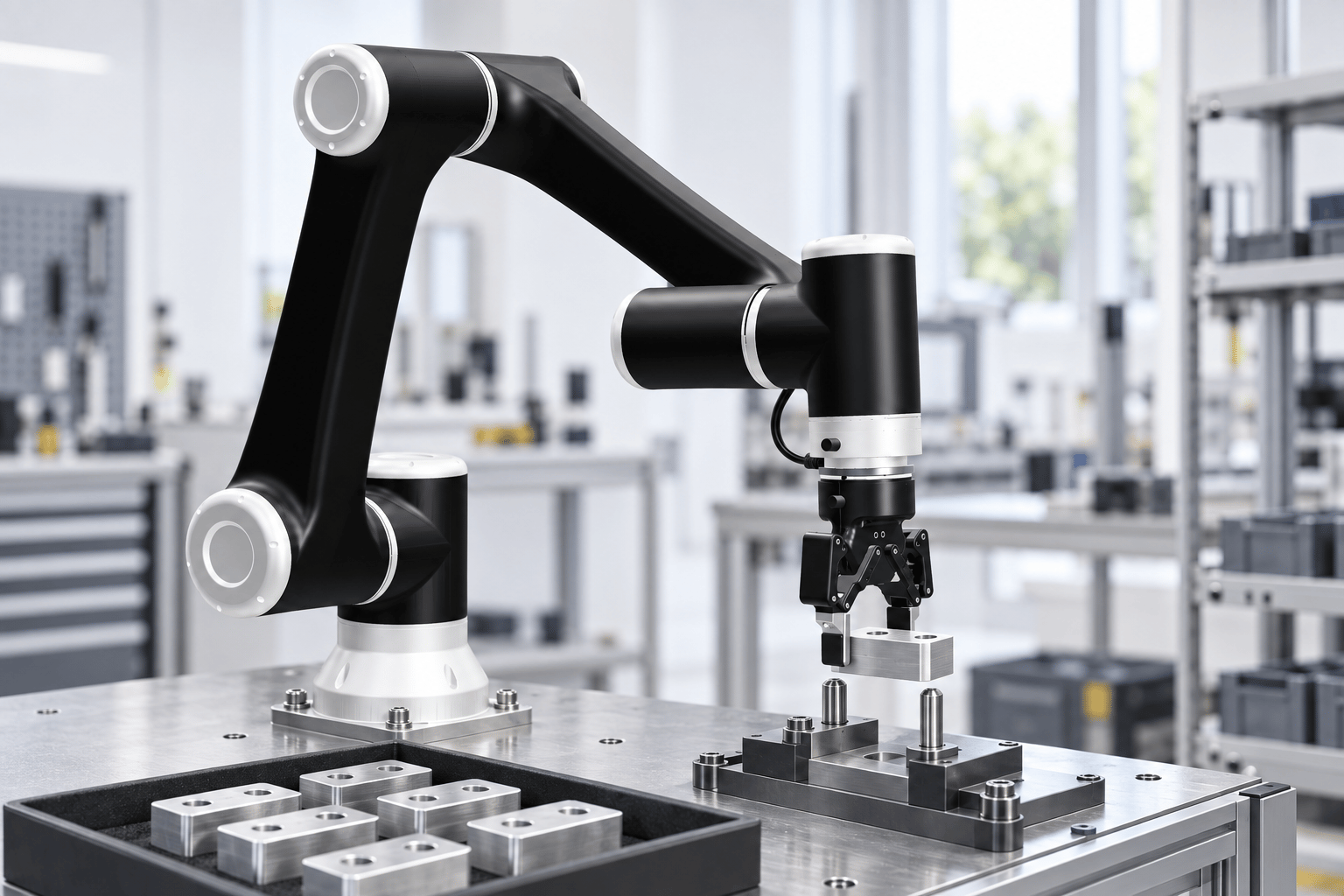

Assembly & material handling
Move components and position parts for assembly.

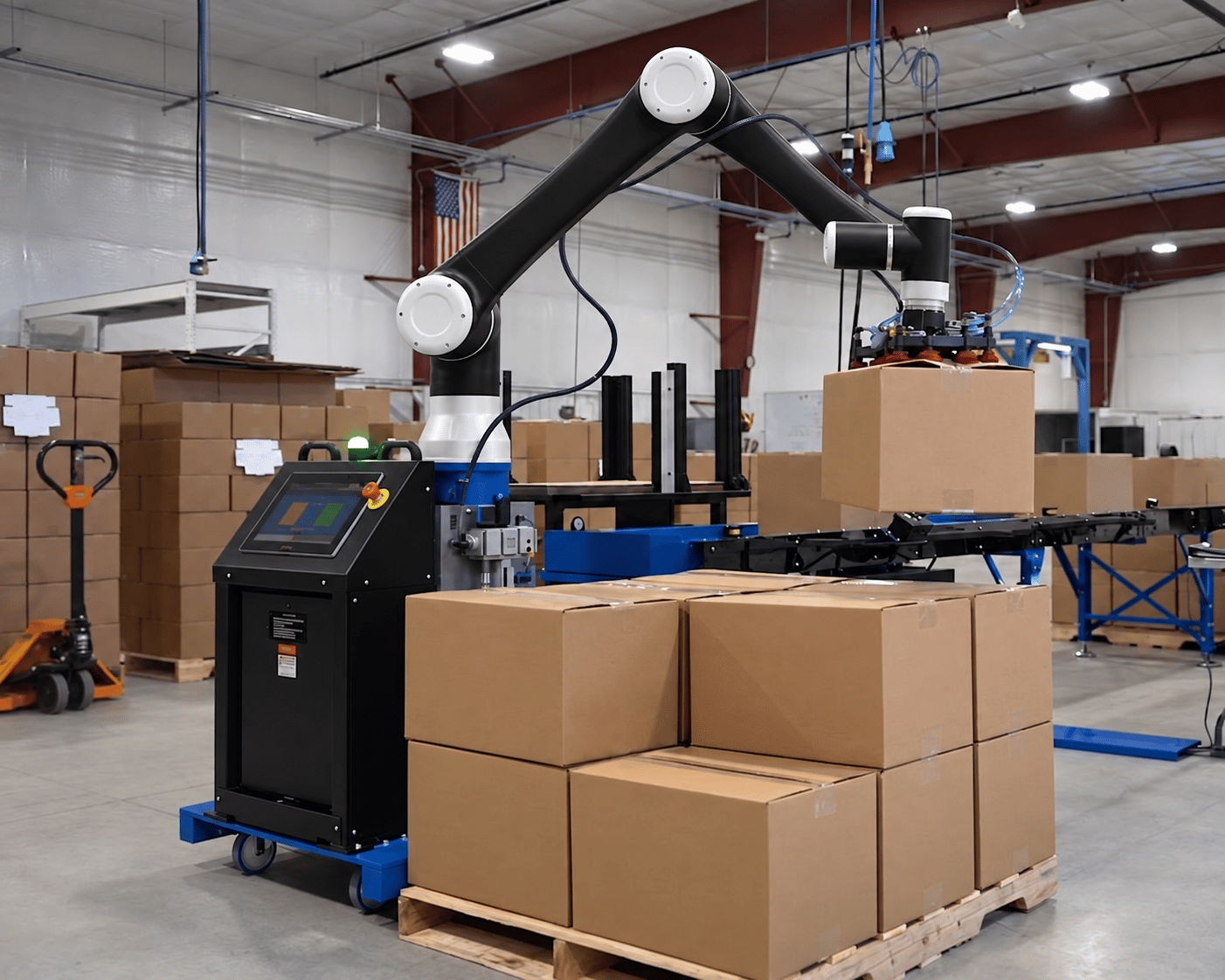

Packaging & logistics
Automate case handling, packing and palletising.

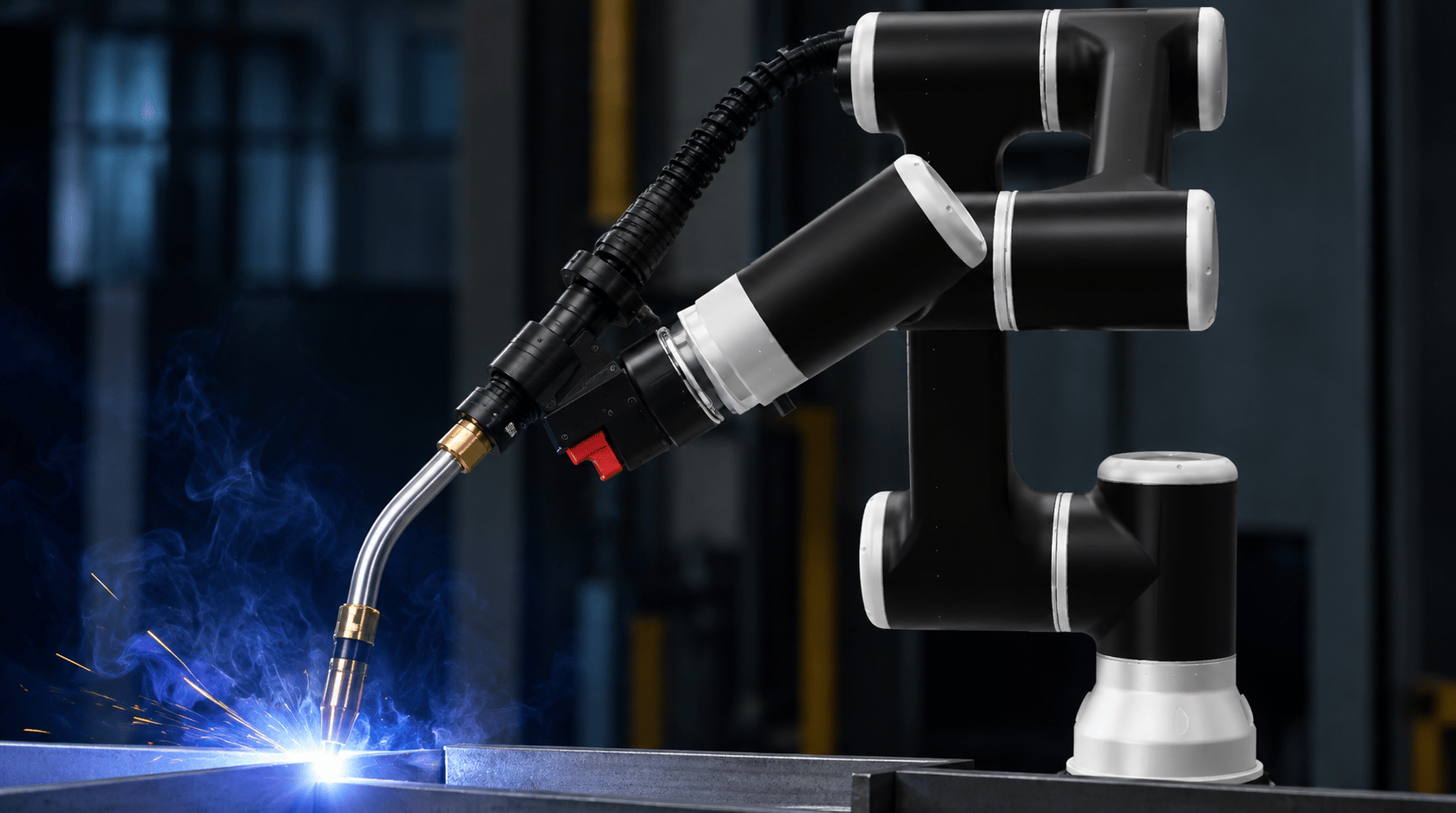

Welding
Follow consistent weld paths with application-specific tooling.
Size your solution
Not sure which model is right for you?
Tell us about your application and our team will help you find the best CI robot for your needs.
