Let’s talk

Meet the DI Series.
Built for speed and
precision.

High-speed delta robots for pick and place, sorting, packaging and other light-duty automation tasks. Engineered for speed, accuracy and reliability.

Request a quote View specifications Datasheet

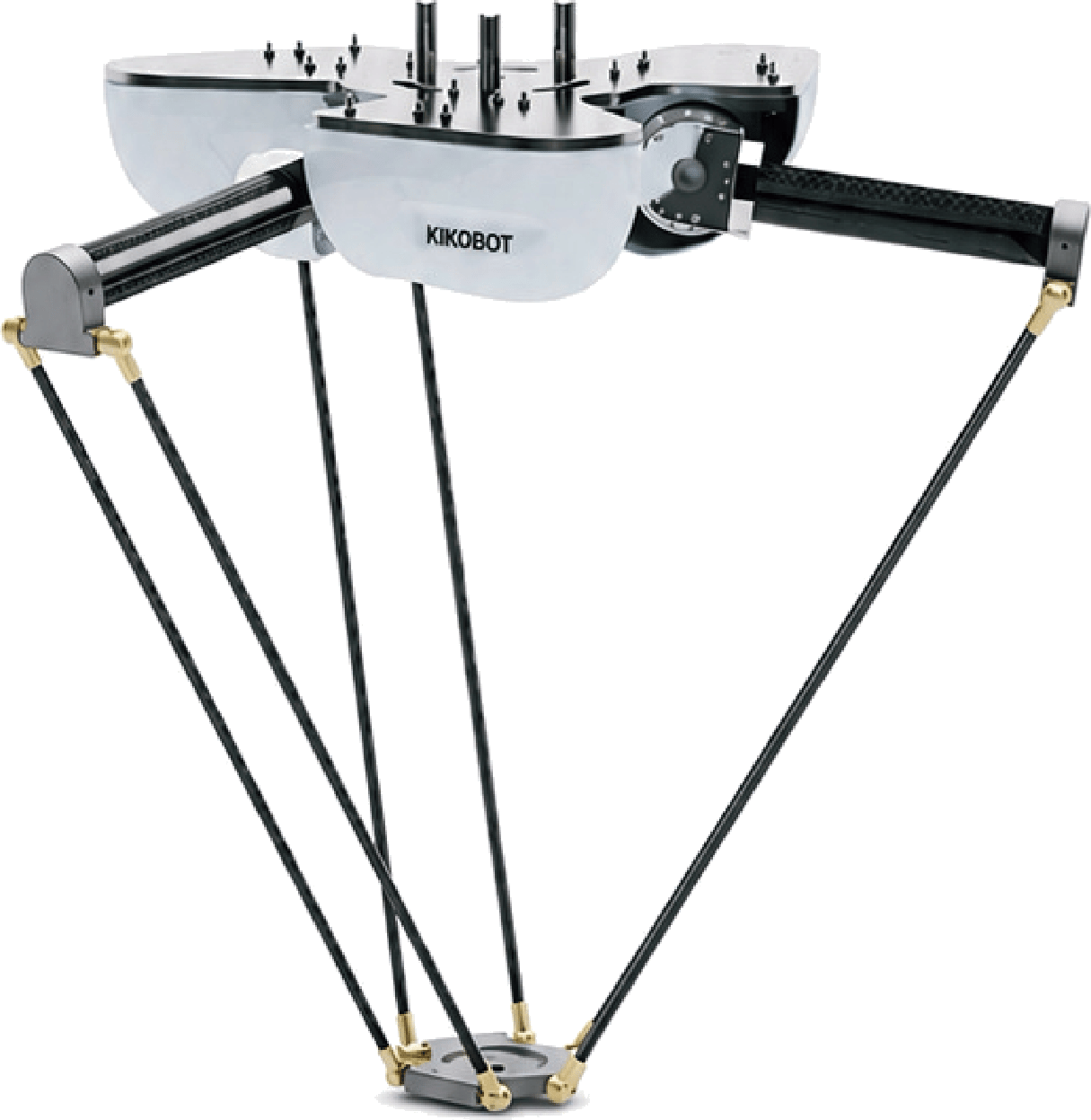

Kikobot DI Series delta robot

Made in India

High-speed operation
Up to 120 CPM
Repeatability
±0.5 mm
Payload
2 kg
Workspace
Ø500 – Ø1000 mm

Delta robots

Designed for
high-speed automation

The DI Series delivers high-speed, high-precision performance to help you automate repetitive tasks with ease. Whether you’re in food, electronics, or consumer goods, our delta robots ensure consistent quality and higher productivity.

  • High-speed performance

    Designed for fast and continuous operation.

  • High precision

    Reliable accuracy for repeatable results.

  • Compact & efficient

    Optimized design for small footprint and easy integration.

  • Easy integration

    Standard industrial interfaces for seamless deployment.

Specifications

Find the right delta robot
for your application

Download datasheet
ModelDI500DI1000
Degrees of freedom3 (4 or 5 variants)3 (4 or 5 variants)
Payload2 kg2 kg
WorkspaceØ500 × 220 mmØ1000 × 350 mm
Repeatability±0.5 mm±0.5 mm
Max speed120 CPM120 CPM
Digital I/O16 DI / 16 DO16 DI / 16 DO
Power input100–240 V AC, 50/60 Hz100–240 V AC, 50/60 Hz
CommunicationEtherCATEtherCAT
Control softwareKikobot Delta StudioKikobot Delta Studio
Operating temperature0–80 °C0–80 °C
InstallationOverhead mountingOverhead mounting
MaterialMS & aluminium body, carbon fibre armsMS & aluminium body, carbon fibre arms
Weight (approx.)20 kg20 kg

Controller & connectivity

Ready for your production environment

Digital I/O
16 DI / 16 DO
Communication
EtherCAT
Input voltage
100 – 240 V AC
Control software
Delta Studio
Operating temperature
0 – 80 °C

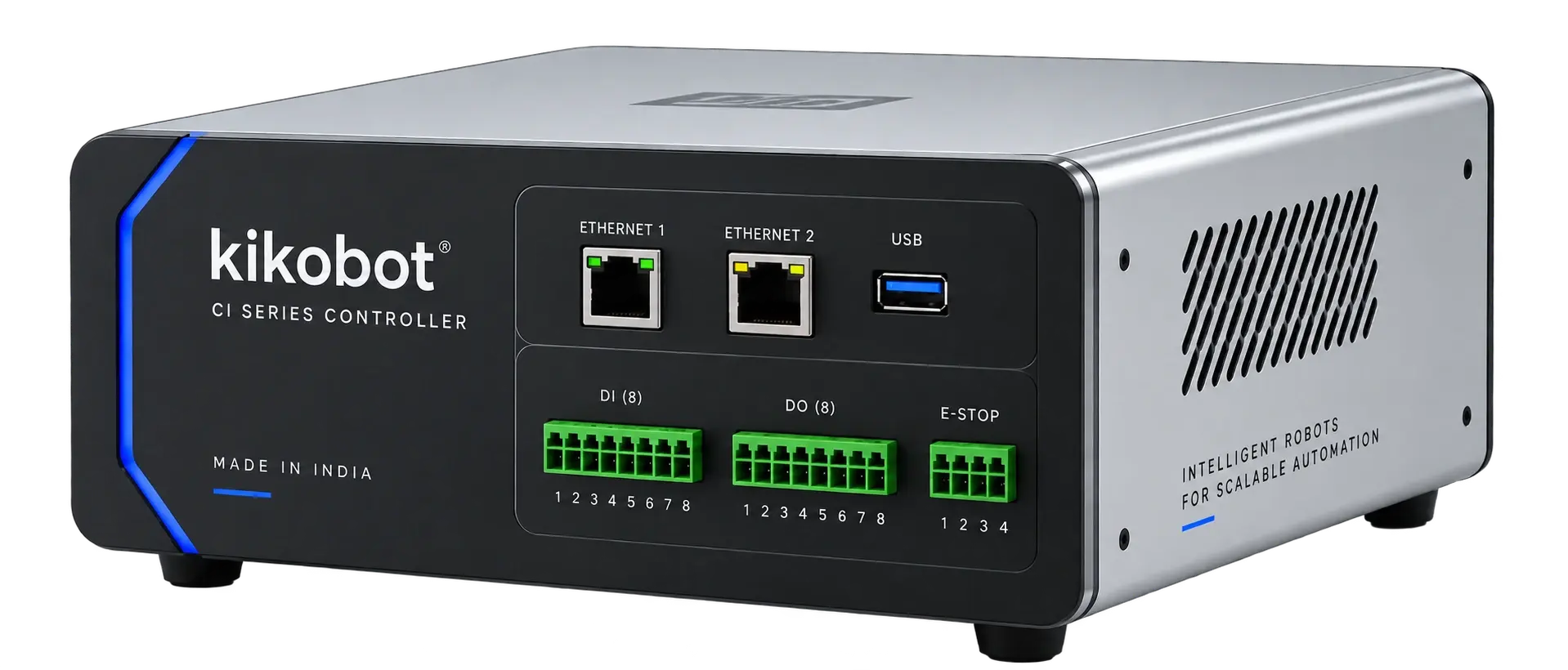

Kikobot robot controller with Ethernet, USB, digital I/O and emergency stop connections
Kikobot Delta StudioProgram editor
BLOCK LIBRARYMotionTool controlLogicInputs / outputs
  1. 01Start program
  2. 02Locate conveyor pick
  3. 03Enable vacuum
  4. 04Move to place position
  5. 05Release part

Build a sequence, one step at a time.

Illustrative interface previews

Kikobot Delta Studio

Program. Simulate. Deploy.

Kikobot Delta Studio makes it simple to program, simulate and manage your delta robots. Plan pick & place trajectories, set I/O, test cycles and deploy to your production line.

  • Visual programming interface
  • Simulation and cycle time estimation
  • I/O configuration and conveyor tracking
  • Easy integration with PLCs and vision systems

Applications

Built for a wide range of industries

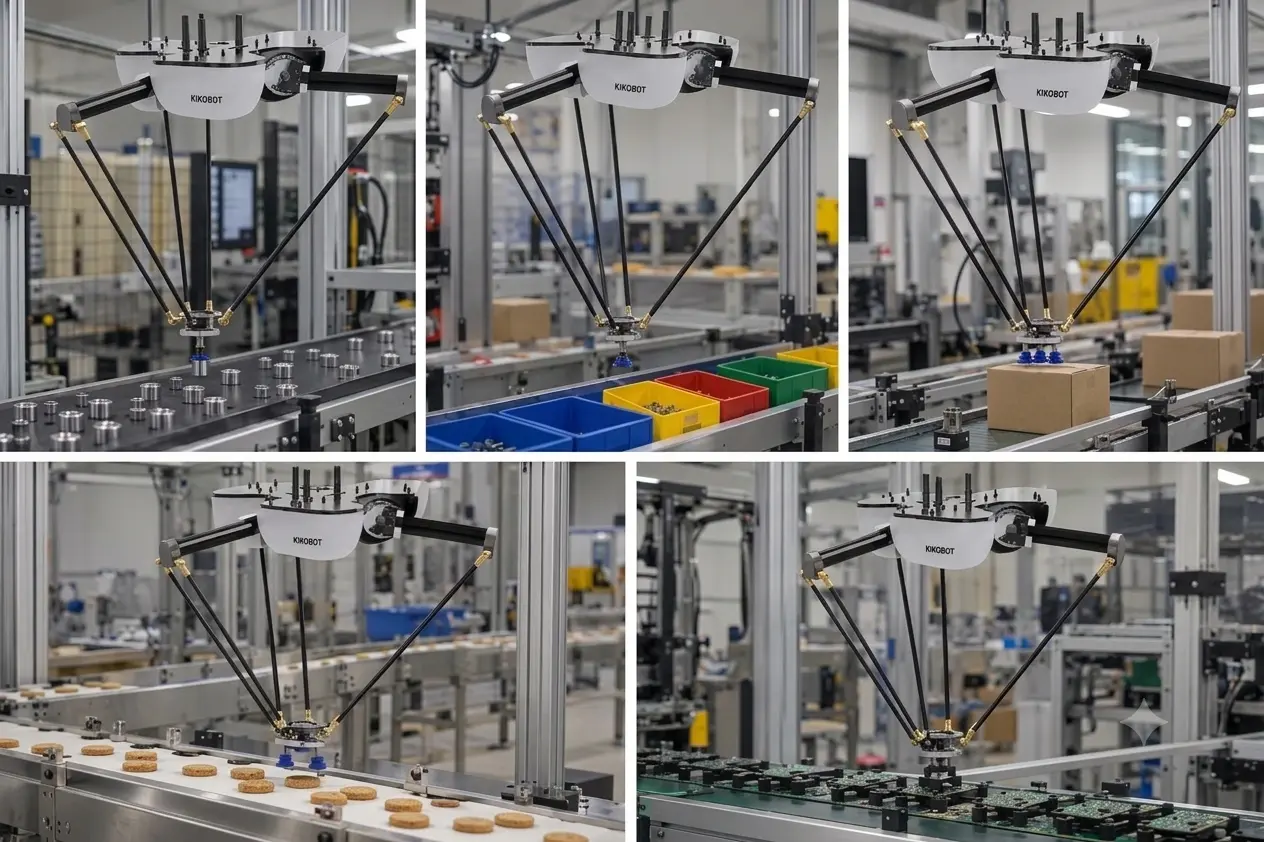

  • Pick & place with a Kikobot robot

    Pick & place

    High-speed handling and positioning of small parts.

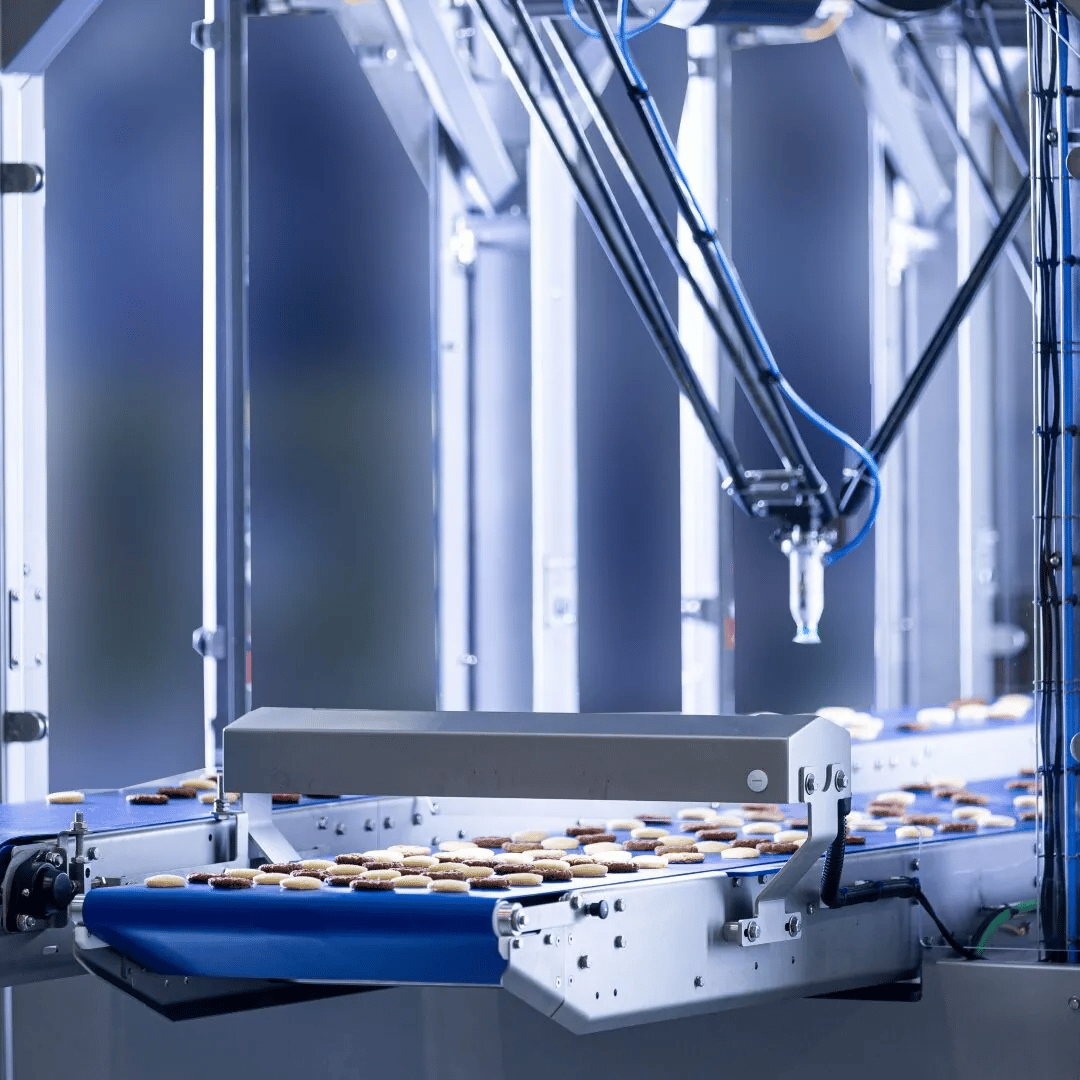

  • Sorting with a Kikobot robot

    Sorting

    Sort and route products along your production line.

  • Packaging with a Kikobot robot

    Packaging

    Move cartons and products through packing operations.

  • Food & FMCG with a Kikobot robot

    Food & FMCG

    Repeatable pick-and-place for food and consumer goods.

  • Electronics with a Kikobot robot

    Electronics

    Precision handling of boards and small components.

Ready to automate?

Let’s build your solution

Talk to our team to find the right DI robot for your application.

  • Get expert guidance
  • Application based recommendation
  • Fast response from our team
Request a quote
